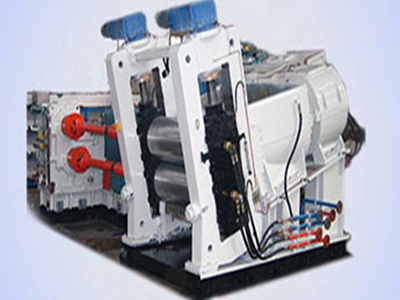

裝備用途：作為GK300、F270以及GK400和F370密煉機排料壓片之用。
主要性能參數
|
型號Type 參數Parameters |
XJY-S330ZE | XJY-S330ZF | XJY-S450ZE | XJY- S450ZF | ||
|
適用于密煉機型號 Model of mixer applied |
F270(GK300) | F370(GK400) | F370(GK400) | |||
|
擠出機 Extruder |
螺桿規格 Screw spec. (mm) |
Φ300/740x1240 | Φ416/936X1475 | |||
|
擠出機功率 Extruder power (KW) |
2X75 | 132,160 | 160 | 2X110 | 185,200, 220 | |
|
螺桿轉速 Screw speed (r/min) |
Max.22 | Max. 24 | Max. 23.5 | ~Max.19 | ||
|
壓片機 Sheeter |
輥筒尺寸 Barrel size (mm) |
Φ510x1065 | Φ410x965 | Φ410x1100 | Φ510x1065 | |
|
擋膠板寬度 Baffle width (mm) |
650~850 | 950 | 750~950 | |||
|
功率 Power (KW) |
2X75 | 132,160 | 160 | 2X110 | 185,200, 220 | |
|
輥筒轉速 Barrel speed (r/min) |
Max.22 | Max.27 | Max.28.7 | Max.27 | ||
| 生產能力 Output (t) | 9 ~11 | 11~13 | ||||
| 設備重量 Equipment weight (t) | ~35 | ~45 | ||||
| 外形尺寸（長X寬x高）mm（不含順料槽）Overall dimension (not including chute) (LXEXH) | 4200x3720x2755 | 4070x4800x2500 | 4070x6500x2500 | 4810x3800x2755 | 4650x5200x2755 | |
