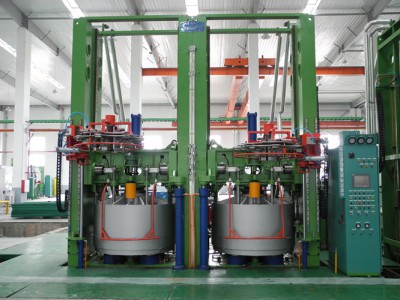

LLY-B1665×4580×2A液壓式輪胎硫化機技術參數
Hydraulic Tyre Curing Press Technical Data
|
項目 ITEM |
單位 UNIT |
規格 SPECIFICATIONS |
|
|
硫化室數目 Curing Cavity No. |
|
2 |
|
|
硫化室保溫罩內徑 Mould Shield I.D. |
mm |
Φ1665 |
|
|
最大合模力 Max. Squeezing Force |
kN |
4580×2 |
|
|
硫化模型高度 Mould Height |
mm |
400-700 |
|
|
中心機構結構形式 Center Mechanism |
|
BOM |
|
|
適用鋼圈直徑 Tyre Bead Diameters |
in |
16-25 |
|
|
硫化輪胎最大外徑 Max. O.D. of Cured Tyre |
活絡模SGM |
mm |
Φ1230 |
|
兩半模2-Piece Mould |
mm |
Φ1300 |
|
|
硫化輪胎最大厚度 Max. Section Width of Cured Tyre |
mm |
500 |
|
|
胎坯最大高度 Max Green Tyre Height |
mm |
700 |
|
|
理論開/合模時間 Designed Mould Open/Close Time |
s |
90/50 |
|
|
機械手可抓取最大重Max. Load of VCL |
kg |
150 |
|
|
模具最大重量 Max Mould Weight |
kg |
6500 |
|
|
高壓油壓力HP Oil Pressure |
MPa |
16 |
|
|
低壓油壓力LP Oil Pressure |
MPa |
8 |
|
|
硫化介質最大外壓Max.External Pressure |
MPa |
1.4 |
|
|
硫化介質最大內壓Max.Internal Pressure |
MPa |
2.8 |
|
|
動力水壓力Hydraulic Water Pressure |
MPa |
2.1 |
|
|
動力空氣壓Compressed Air Pressure |
MPa |
0.7 |
|
|
控制空氣壓力Control Air Pressure |
MPa |
0.35 |
|
注： 硫化輪胎最大外徑和硫化輪胎最大厚度兩尺寸與模具有關，表中硫化輪胎最大外徑為預計值、硫化輪胎最大厚度為機器可通過的輪胎最大厚度值。
Remark: As Max.O.D.and Max.Section Width of cured tyre are related to the mould dimensions,the Max.O.D. shown in the above table are estimated value. And values for Max. Section Width are the Max.size which can pass through the curing cavities.
